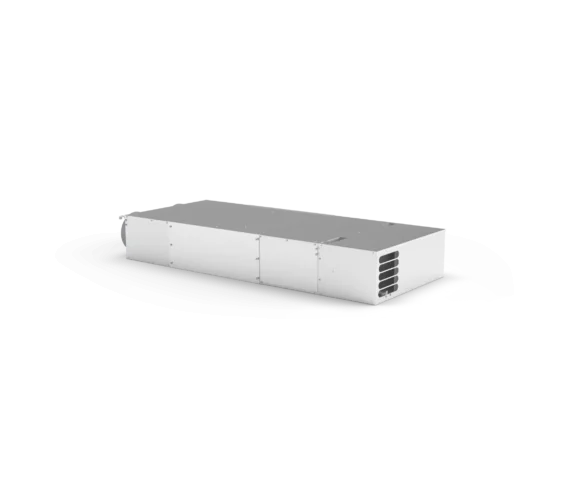

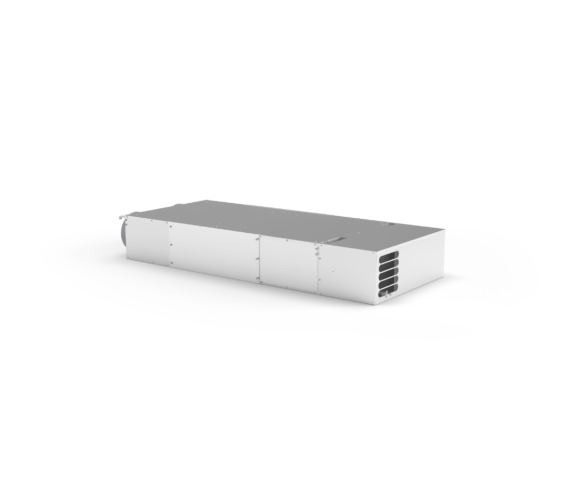

Flow400
Innovative decentralized HRV solution designed for efficient ventilation of offices and shared spaces with a capacity up to 10 people.
The innovation of HRV Community, for offices and shared spaces
The Helty Community HRV line expands with the addition of Flow400, the innovative solution designed for the efficient ventilation of offices and shared spaces for up to 10 people. Compact and versatile, Flow400 ensures filtered and fresh air at all times with its advanced filtration system consisting of ePM1 80% filters that stop up to 80% of sub-micron particulate matter.
Price upon request
The new Flow400 Helty is the ideal solution for ventilation of offices and workspaces with up to 10 occupants. An HRV that provides fresh and pure air at all times, ensuring efficiency and energy savings with an enthalpy heat exchanger that guarantees up to 92% heat recovery.
The ideal solution for healthy air in shared spaces
New Flow400 Helty ensures the highest standards of indoor air healthiness using powerful ePM1 80% filters that stop up to 80% of particulates smaller than one micron, as well as preventing dust, smog, spores, pollen and dust mites from entering from outside. The Coarse 80% filter also provides protection against the entry of impurities into the unit, preserving the heat exchanger and safeguarding its functionality over time.
High thermal comfort and energy saving
Equipped with an enthalpy exchanger with double cross-flow countercurrent, Flow400 allows a maximum heat recovery of 92%. The HRV unit can be configured to variable airflow rates, from 80 to 400 m³/h, to meet different ventilation requirements, according to actual needs. In Night mode, for instance, the display lights are switched off and speed is minimized to save energy.
Efficient, quiet and easy to install

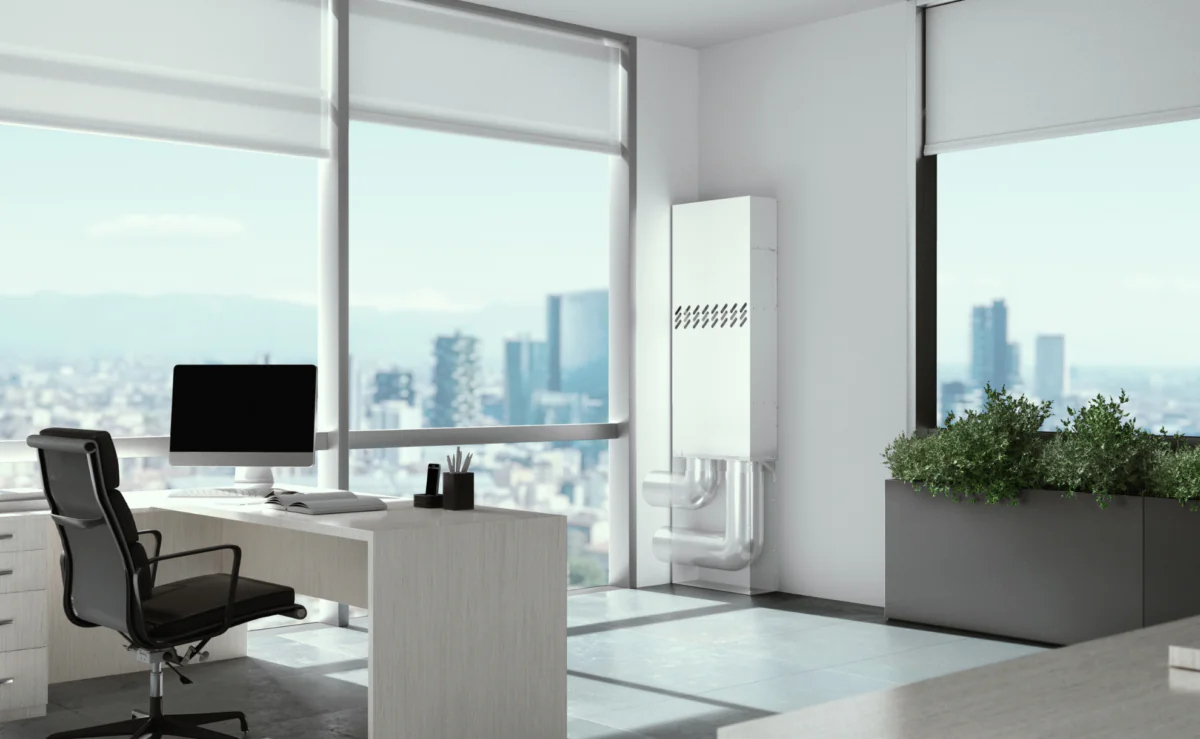

With a sound pressure level of just 35 dB(A) at design flow, Flow400 is the ideal solution for applications in professional environments that require special attention to acoustic comfort, such as offices, medical surgeries and common rooms. Available in the Steel version, with a steel cover ready for visible installation, Flow400 is perfect for retrofitting existing buildings. It is easy to install because it can be positioned on the wall (vertically) or on the ceiling (horizontally) with just two 200mm coring holes.
Technical data
| Characteristics | U.M. | Value | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow | m3/h | 80/130/180/250/320/400 | |||||||||||||||||||||||||||
| Airflow adjustment | night + 4 stages + hypervent. | ||||||||||||||||||||||||||||
| Power consumption | W | 16/21/30/49/73/120 | |||||||||||||||||||||||||||
| Supply voltage | V AC | 230 | |||||||||||||||||||||||||||
| Max. current consumption (1) | A | 0.6 | |||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
