How do I install a wall-mounted Helty CMV?
A wall-mounted CMV can be installed quickly and without costly work. Simply drill two 80mm cores on the perimeter wall, prepare the power supply and fix the unit to the wall using screws and dowels.
FlowULTRA
Wall-mountable HRV solution with non-invasive installation, providing airflows of up to 120m3/h and high energy efficiency performance.
HRV retrofit solution for residential and small office spaces
A new addition to the Helty wall-mounted range, FlowULTRA represents the perfect evolution of HRV retrofit technology for medium-sized rooms, open spaces, and small offices where the need for proper air exchange is crucial in recently renovated contexts, while maintaining the energy efficiency achieved through building envelope insulation
88% thermal recovery efficiency
19.5 dB sound pressure level
120 m3/h maximum airflow
Constantly clean air with F7/G1 filters
Price upon request
A solution designed to counteract condensation and mold issues and meet air hygiene requirements in medium-sized rooms, small offices, professional studios, and medical practices.
Increased Airflow Capacity and Easy Installation
Flow ULTRA is the new continuous dual-flow ventilation unit from Helty, designed to serve individual rooms with adjustable airflow rates ranging from 15 to 120 m3/h. This decentralized HRV unit can be installed with two 100 mm diameter core drillings on the perimeter wall and comes with a standard white ABS cover for seamless aesthetic integration with the existing environment.
High Filtration Capacity and Thermal Efficiency
The continuous replacement of exhaust air with fresh air, combined with external air filtration using an F7 filter, creates a healthier and more comfortable environment by eliminating dust, odors, spores, and pollen. Energy savings are further enhanced by the enthalpy heat exchanger with efficiency up to 88%.
Available in Standard, PLUS, and ELITE Versions

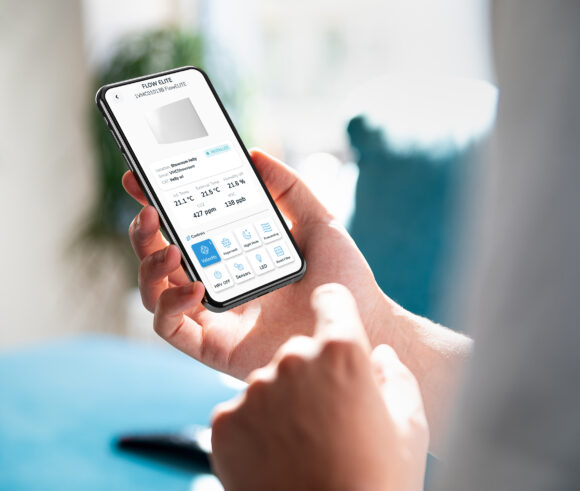

All FlowULTRA models come standard with an infrared remote control for unit management. The Plus version is enhanced with the Air Guard app, equipped with a humidity sensor for automatic ventilation operation. The flagship model, FlowULTRA Elite, is tailored for those most sensitive to indoor pollution: it also monitors CO2 and VOC levels, automatically adjusting the airflow rate to ensure constant air hygiene.
Technical data
| Characteristics | U.M. | Value | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow | m3/h | 15/30/45/60/80/120* (1) | |||||||||||||||||||||||||||
| Airflow adjustment | night + 4 stages + hyperventilation | ||||||||||||||||||||||||||||
| Power consumption (2) | W | 3/6/9/13/23/55 | |||||||||||||||||||||||||||
| Supply voltage | V AC | 230 | |||||||||||||||||||||||||||
| Operating voltage | V DC | 24 | |||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
1. In high-speed ventilation mode2. In hyperventilation mode3. With 230 V AC supply voltage4. (horizontal W x H x D)5. Measured on a 30 m² semi-anechoic environment at a distance of 3 m
Download
Other wall-mounted HRV units
FlowEASY
The wall-mounted HRV system is efficient, compact and functional.
Find out more
FlowEASY-UV
Automatic air exchange and UV sanitation.
Find out more
FlowPLUS
With integrated humidity sensor and app control
Find out more![FlowElite[1]](https://www.heltyair.com/wp-content/uploads/2022/01/FlowElite1-245x175.png)
FlowELITE
With humidity, CO2 and VOC sensors. LED light kit and app control.
Find out moreFrequently asked questions
What are the hole measurements for a wall-mounted CMV?
The installation templates for Helty Flow wall-mounted CMV models are available for download in the reserved area and include holes distances, coring dimensions and overall dimensions.
Do Helty Flow CMVs need a condensate drain?
No, none of the models in the Helty CMV range require a condensate drain
How does a decentralised dual-flow CMV system work?
A decentralised dual-flow CMV allows for continuous replacement of extracted stale air with fresh air intake, meaning better results in terms of energy efficiency and purification of incoming air.
Are you a reseller?
Are you interested in offering our products to your customers? Find out how we can work together
Become a reseller
Certified quality and performance
The performance of the Helty ventilation systems are recognized by the Casa Clima Quality Seal and have obtained the SIMA and BioSafe validations
